10KW

Place of Origin : Wuxi,Jiangsu,China

Brand Name : OUMA

Certification : CE,ISO, EPA, SONCAP,CPCB

Model Number : OM13000Q

Rated output : 10KW

MOQ : 5 units

Price : To be inquired

Packaging Details : Plastic wrap, then veneer case

Delivery Time : 20 working days

Payment Terms : T/T or L/C at sight

Supply Ability : 100 units/day

Contact Now

OUMA is supplying different gasoline generator for wide application in agricultural,commercial, residential, commercial and rental sections. From clean water pump to sewage pump,each unit is bringing you excellent performance.

Excellent economic performance

High quality OUMA engine is the power source,ensuring low fuel consumption and high cost effectiveness.

Portability

The special alloy frame greatly reduce total weight while enhance easy operation and portability.

High pressure, high discharge head

High efficiency impeller ensures long distance and high discharge head of water supply.

Good durability

High quality mechanical sealing ensures long service life.

Specifications:

Model				OM13000QE
	Rated Frequency		HZ	50
	Rated Output		KW	10
	Max Output		KW	11
	Rated Voltage		V	220
	Rated Current		A	45.5
	Rotation Speed		r/min	3000
Alternator	Alternator Type			OM270B
	Pole NO.			2
	Phase NO.			Single Phase
	Excitation Mode			Self excitation constant voltage(W/ AVR)
	Power Factor		COSΦ	1.0
	Insulation Grade			N.F.B
Engine	Engine Model			HONDA GX630
	Engine Type			V-Twin Cylinder,Four Stoke,Air-Cooled,OHC
	Bore×Stroke		mm	78*72
	Displacement		ml	690
	Compression Ratio			8.5:1
	Rated Power		KW	18
	Ignition Mode			Inductive ignition(TCI)
	Lubrication Mode			Pressure splashed
	LubeType			SF Level&Above Or SAE 10W-30,15W-40
	Lube Capacity		L	1.3
	Starting Mode			12V Electric Start
	Starting Motor Capacity		V-KW	12V 1.4KW
	Charging Generator Capacity		V-A	12V 8A
	Battery Capacity		V-Ah	12V 36Ah
	Min Fuel Consumption		g/KW.h	370
	Fuel Type			Unleaded Gasoline
Gasoline Generator Set	Panel Mode			Common Panel with Voltmeter, Frequency Meter, Timer
	Output	Socket		Two Single Phase Sockets
		Terminal		Included
	Noise level(dB@7m)		dB(A)	76
	Oil capacity		L	37
	Continuous running		H	6.5
	Overall dimension(L×W×H)		mm	940×630×640
	Net Weight		kg	169

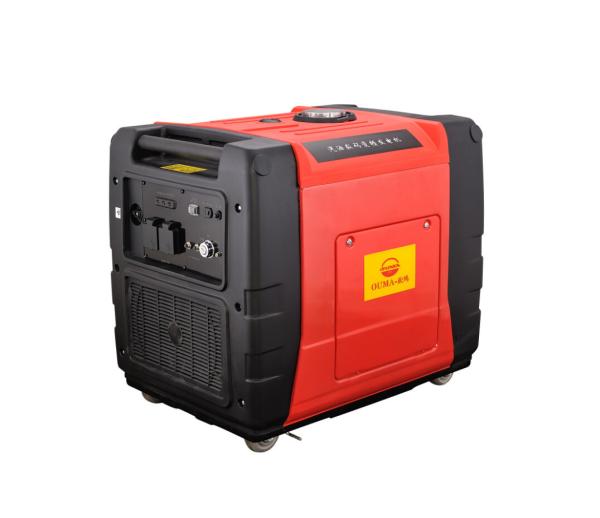

10KW Images
